Introduction to the operating steps of dry mist hydrogen peroxide sterilizer in sterile pharmaceutical workshop

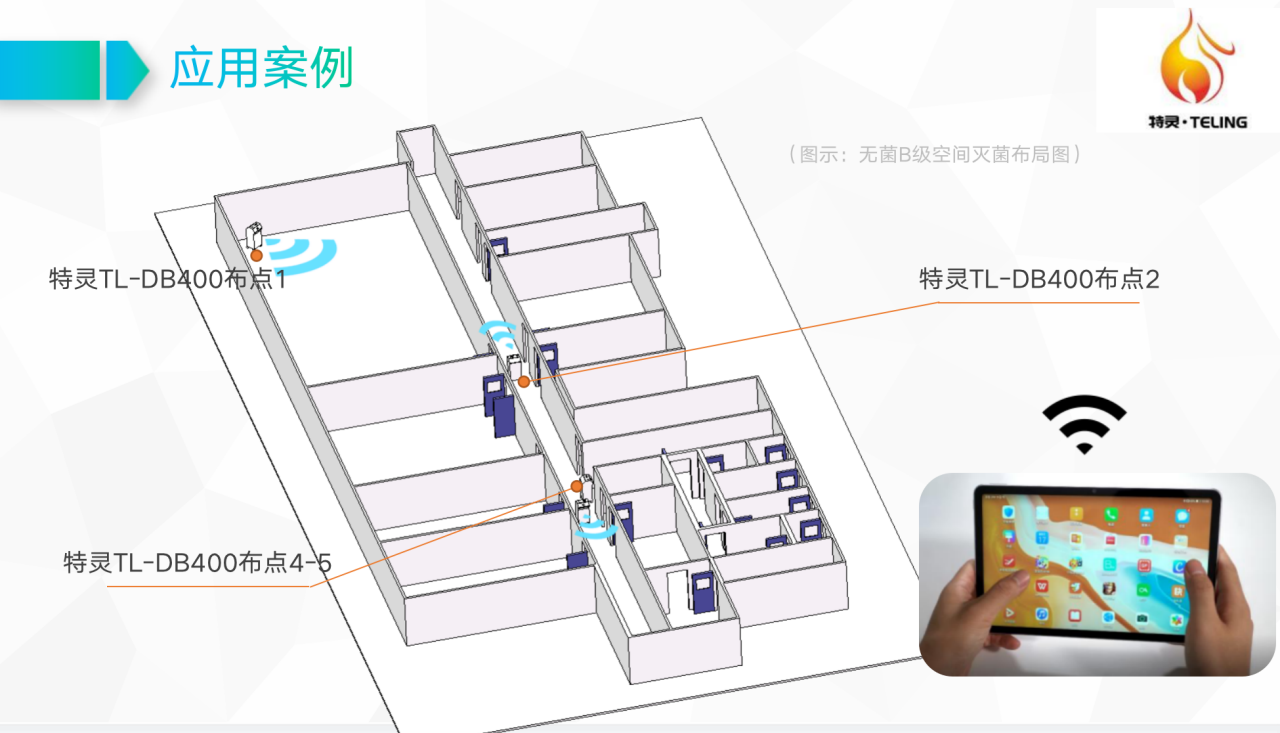

Equipment layout, spore strips, and humidity probe sampling principles:

The dry mist hydrogen peroxide sterilizer equipment should be kept 1.5 meters away from any walls or other surfaces (to avoid wetting surfaces that are too close to the nozzle).
2 From the nozzle, the distance between the sprayed dry fog flow and any object must be controlled between 1.5 m and 3 m (also to avoid wetting the surface; at the same time, promote the spray effect).
If multiple nozzles are used, the equipment needs to be placed in positions where each nozzle can cover approximately equal volumes of space.
The height of the nozzle should be approximately 12-16 inches (30-40 cm) from the ceiling.
Each nozzle covers a space/room volume of no more than 250 cubic meters.
6 The flow direction of each nozzle spray shall be towards the open area in the room.
When deploying humidity probes and biological indicators, monitoring points should be taken at locations far away from the equipment and in complex room structures. Some key areas or important equipment areas can also have additional monitoring points to ensure that the area achieves the corresponding sterilization effect.

Reference parameters for dry mist hydrogen peroxide sterilization:

1. The sterilizing agent can be controlled to spray out in the form of dry mist, with the particle size of the dry mist controlled at a precise and consistent level, reducing the risk of condensation droplets and ensuring the penetration and sterilization effect in complex areas It can effectively reach all areas of the clean area, and the spray volume of 10 probes can be set independently!
3. Intelligent control, tablet display, easy and intuitive operation.
4. Tablet wireless remote control, time reservation, timer switch and other functions
6. Sturdy structure and easy maintenance
7. A single machine can be used for sterilization in a space of 20-2500m3
8. The entire sterilization process takes 2-5 hours, greatly reducing the sterilization time Replace formaldehyde sterilization and achieve a killing effect of 6 logarithmic levels
10. No residue, no harm to personnel
11. Short sterilization time
12. GMP, FDA, and EP recommend sterilization methods for clean area environments. 13.10 nozzle designs provide a larger sterilization space of 2500 cubic meters.
14. The programmable controller program is automatically controlled with software calculation function, which can calculate the consumption of disinfectant according to different temperatures, humidity, and room sizes, and accurately control the dosage. The sterilization process parameters, process indicators, and equipment operation status can all be visually displayed. Has significant traceability to the entire sterilization process. Meets GMP requirements. The user's tablet touch screen provides very comprehensive information.
15. Up to 10 rooms with parameter storage function, convenient for traceability and repeated sterilization operations!
16. Secure Password
The password system includes 3 user levels and can identify 20 users. The ability to change process parameters can be determined based on the user's password level.
17. History screen: It can display sterilization time, disinfectant usage history, and retain 9 sets of data.
18. Equipment maintenance screen: This screen allows for manual operation of the equipment, creating conditions for equipment maintenance.
19. With printing function
Touchscreen tablet human-machine dialogue interface, user-friendly design with three-level administrator password access; Display date and clock function;
